Commercial Dough Divider Rounder With 3 Rows QLDR-3
QLDR-3 dough divider rounder is a heavy duty, high output dough balls making machine with 3 rows, suitable for commercial bread production in bakery factory.
Automatic feeding dough balls for further processing to obtain flour tortilla, pita, pizza, hamburger, hot dog buns, mantou, samali bread, and has a Teflon-coated SS304 hopper of approx. 35kg capacity.
Feature：
Volumetric type dividing system, won't hurt gluten.
Suitable to work softy and semi-hard dough.
Automatic weighting system, easy to operate.
Teflon coated rounding drum, make it's easy for cleaning.
Top hopper volume 35Kg.
Fit 50-65% water content dough.
Oil free dividing system, helps to save cost.
NO OIL, NO MESS, SAVES MONEY!
Product Description
Automatic dough dividing and rolling machine can roll 28-130 grams of dough, dividing evenly and accurately, not sticky, gram weight error ±2g. Food safety 304 stainless steel body, PU food conveyor belt for quantitative dividing and rolling dough, widely used in industrial production of bread dough, pizza, air bun, naan, burger embryo, sandwich, tortilla, toast, baguette and other products.
The machine is suitable for working soft and semi-hard dough and has a Teflon-coated stainless steel hopper of approx. 20kg capacity.
The dough is handled gently thanks to a star wheel dosing system and adjustment of the pressure in the portioning chambers. All this avoids stress on the dough due to the mechanical action of the machine, producing the required weight of the dough.
After the weight is determined the piece of dough is discharged and enters the rounding drum, which is easily interchanged according to the required weight. Electronic adjustment of the rounding speed is also possible during work. The suitably rounded pieces of dough are placed on the spreading belts for pick-up or for being placed on the further molders.
The maximum capacity can reach 4500pcs/h with a weight range from 28 to 130 grams. It is also available with a touch-screen control panel, with 50 storable programs, that controls and stores all the machine functions, from adjustment of sizes to rounding and production speed, with diagnostics for possible operational problems.
| Model | Weight range | Production pcs/h | Overall size cm | Control system | Color |
| QLDR-3 | 130-250g | 3000-6000 | 210*120*180 | Automatic | Silver |
| Touch Screen Is Optional, Standard Machine Equipped with Botton Control Panel | |||||
| Accessories | |||||
| Name | Piston | Drum | Conveyor belt | Hydraulic oil | Gear oil |
| SPEC | food grade plastic | THREE rows of aluminum alloy drum | food grade PU | Shell-TELLUS-S2MX 46 | Shell-Omala-S2 G |
Data Sheet of Economical Version Dough Divider Rounder:
| Dough divider rounder | Model | Weight range | Max capacity | Dimension (mm) |
| Heavy duty type | QLDR-2 | 150-350g | 4000pcs/h | 2100*1200*1800 |
| QLDR-3 | 130-250g | 6000pcs/h | 2100*1200*1800 | |
| QLDR-4 | 28-200g | 8000pcs/h | 2100*1200*1800 | |
| QLDR-5 | 28-130g | 10000pcs/h | 2100*1200*1800 | |
| QLDR-6 | 28-130g | 12000pcs/h | 2100*1200*1800 | |
| QLDR-8 | 28-110g | 16000pcs/h | 2100*1330*1800 | |
| QLDR-9 | 40-70g | 18000pcs/h | 2100*1330*1800 | |
| Suitable dough water content of 50-65%, based on 100kg plain flour. | ||||
Feature 3 Rows Dough Divider Rounder:
1. Automatic dough divider and rounder for products as if hand-made quality
2. Special dosing system for gentle handling of dough
3. Touch panel operation with recipe management
4. Setting/control of the machine, manually with hand wheels or by touch panel consumes little flour
Commercial Dough Divider Rounder With 3 Rows Working:
Detail of Commercial Dough Divider Rounder With 3 Rows:

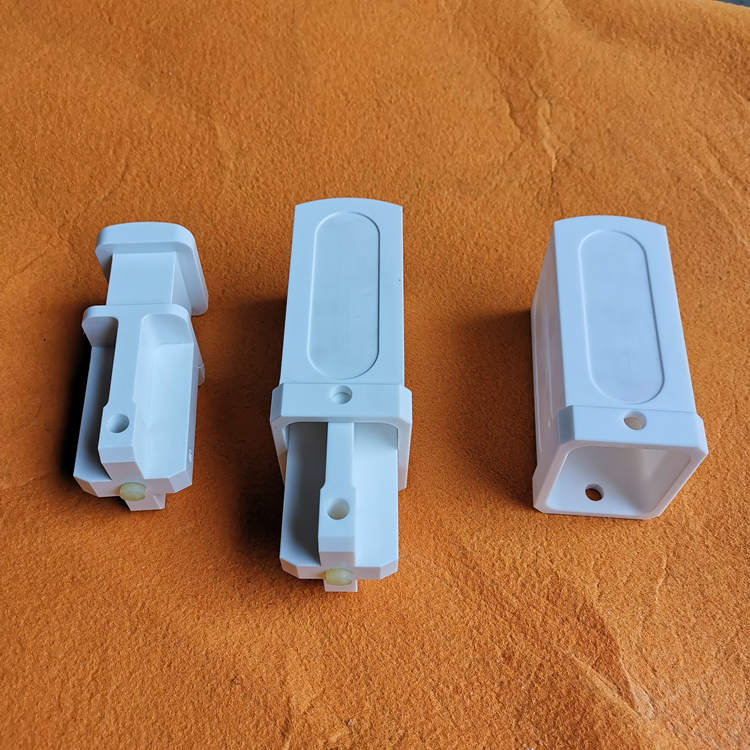

Special engineering plastic material slicing piston allows dose slicing without oil.
Plastic food-grade pistons are safer, non-stick, reduce costs and are less prone to staining.
FAQ:
Q: Are you a trader or manufacturer?
A: Of course, We are a factory with 10 years of professional food machine manufacture, can provide customized machines according to your factory size.
Q: How about the after-service of your product?
A:1 year warranty. Our engineers are available to service machinery overseas.
Q: How long is your delivery time?
A: The delivery time for a single machine is 15-20 days, and for a production line is 45-60 days.
Q: Why did I choose you?
A: We have been in this line for over 10 years. We can supply a one-stop service with a professional engineering team, exact layout proposal and quality machinery.
